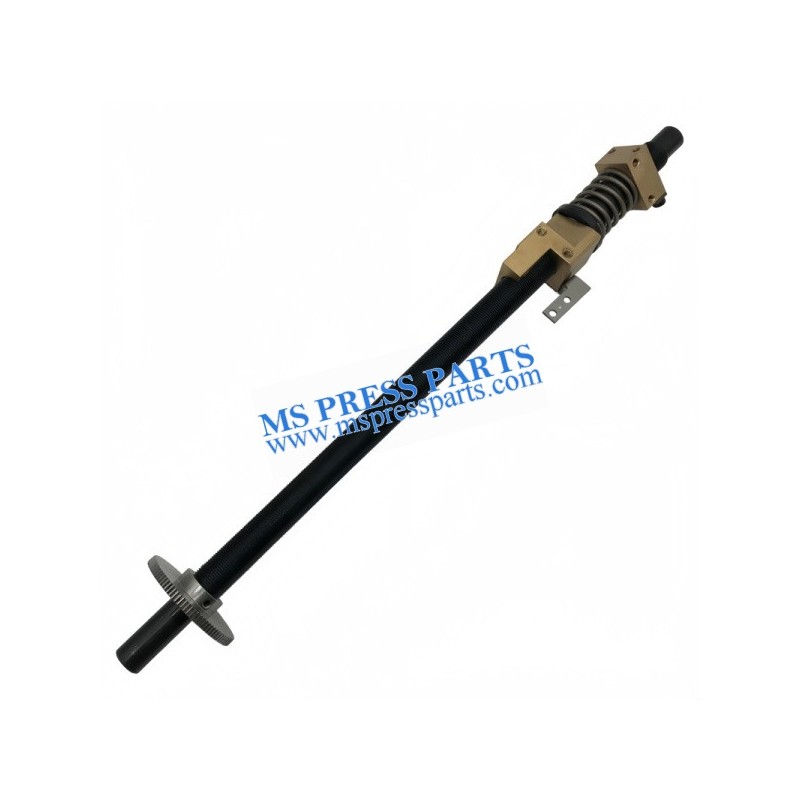

G2.072.049,Heidelberg SM52/PM52 printing machine Pull gauge thread rod assembly & Spindle - Replacement
$112.00
HD-SM52/PM52- pull gauge thread rod assembly & pull gauge screw for Heidelberg SM52/PM52 printing machine. Precision replacement part, Made in China. Ensures accurate paper side lay registration.
(sell by sets)
This assembly consists of multiple small components. The complete parts list includes the following part numbers:
G2.072.049 Spindle
G2.072.053/03 Gear
00.520.0714 Allen Screw M4x16
G2.072.056/03 Support
G2.072.050/05 Nut
G2.072.052/01 Sleeve
66.010.162 Compression spring
G2.072.051/04 Lock Nut
00.550.0392 Needle Bushing HK1312-AS1
Security policy (Your personal information has security protection function. Please keep your account and passwords properly.)
Delivery policy (If you do not receive your purchase within 30 days, you can ask for full refund.)
Compliance policy (We are independent supplier, not affiliated with Heidelberg, Komori, or Roland.)
Product: Pull gauge thread rod assembly & pull gauge screw
Part Number: HD-SM52/PM52-G2.072.049
This replacement set is specifically designed for Heidelberg SM52 (Speedmaster 52) and PM52 (Printmaster 52) sheet-fed offset printing presses. The pull gauge (also known as side lay pull guide) is critical for precise lateral paper positioning before printing.
The thread rod assembly controls the fine forward/backward adjustment of the pull gauge finger, directly affecting paper alignment accuracy. The pull gauge screw locks the assembly position to prevent drift during high-speed operation.
Both components are Made in China to exact OEM specifications, using hardened steel for wear resistance. They directly replace worn or damaged original Heidelberg parts, restoring registration accuracy and reducing misprints.
(sell by sets)
This assembly consists of multiple small components. The complete parts list includes the following part numbers:
G2.072.049 Spindle
G2.072.053/03 Gear
00.520.0714 Allen Screw M4x16
G2.072.056/03 Support
G2.072.050/05 Nut
G2.072.052/01 Sleeve
66.010.162 Compression spring
G2.072.051/04 Lock Nut
00.550.0392 Needle Bushing HK1312-AS1
Terms of Payment:
Bank transfer ( T/T ), Paypal, Western Union
Modes of transportation:
DHL, UPS, TNT, Fedex.......
Because of the limit of website, we can't display all kinds of spare parts on it. If you need some items and can't find out on our website, pls don't hesitate to contact us.
Contact details:
E-mail : offsetspareparts@yeah.net
WhatsApp : +8615989693380 (Double)
+8618820097919 (Amanda)
Skype : +8615989693380
