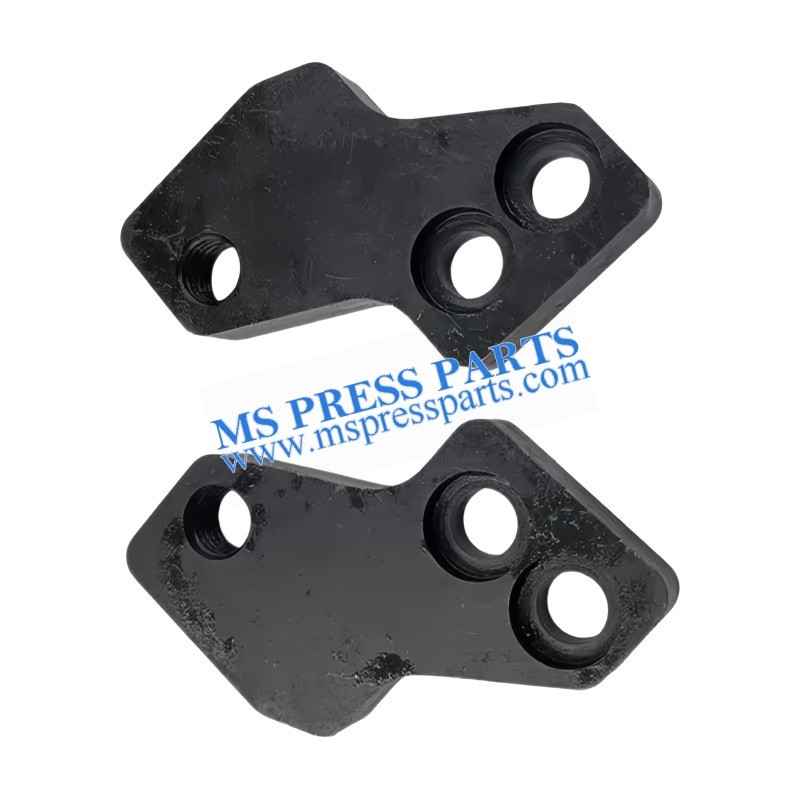

71.010.083 | 71.010.096 Heidelberg CD102 SM102 Connecting Link OS/DS | Original Specification Replacement Part
$49.00
Heidelberg 71.010.096, Heidelberg 71.010.083, 71.010.096 71.010.083 set, CD102 connecting link set, SM102 gripper arm kit, CX102 actuation link pair, SX102 timing link set, SO74 press replacement parts, OS DS link kit, Made in China
(Sold in pairs)
Security policy (Your personal information has security protection function. Please keep your account and passwords properly.)
Delivery policy (If you do not receive your purchase within 30 days, you can ask for full refund.)
Compliance policy (We are independent supplier, not affiliated with Heidelberg, Komori, or Roland.)
The Heidelberg Connecting Link Set (71.010.096 & 71.010.083) is a matched pair of mechanical components designed to work in unison within the gripper bar actuation system of high-speed offset presses.
71.010.096 serves as the primary actuation link, typically positioned on the Operator Side (OS), transmitting motion from the cam follower to the gripper shaft.
71.010.083 functions as the secondary or return link, typically positioned on the Drive Side (DS), ensuring synchronized timing and balanced force distribution during the gripper opening and closing cycle.
When replaced together as a set, these two components restore factory-specified timing accuracy, eliminate mechanical play caused by uneven wear, and prevent registration issues, paper jams, and premature failure of adjacent components. This complete kit is engineered for the CD102, CX102, SM102, SX102, SO74, and SO102 press platforms. Manufactured to precise tolerances.
(Sold in pairs)
Terms of Payment:
Bank transfer ( T/T ), Paypal, Western Union
Modes of transportation:
DHL, UPS, TNT, Fedex.......
Because of the limit of website, we can't display all kinds of spare parts on it. If you need some items and can't find out on our website, pls don't hesitate to contact us.
Contact details:
E-mail : offsetspareparts@yeah.net
WhatsApp : +8615989693380 (Double)
+8618820097919 (Amanda)
Skype : +8615989693380
71.010.083,71.010.096
